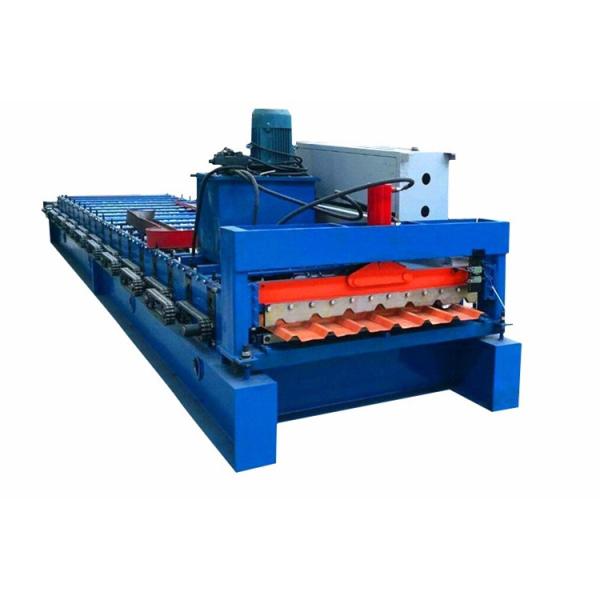

15 M Min Ibr Sheet Roll Forming Machine

  • 1
  • 2
  • 3

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : $6500-8200 per set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 25 Sets/months

Delivery Time : 20-30 days

Packaging Details : Plastic Film For Naked Machine

Product Name : Steel Galvanized Metal Trapezoidal Metal Ibr Roof Tile Sheet Roll Forming Machine

Type : Steel Tile Forming Machine

Material Thickness : 0.2-0.6 mm

Roll material : 45# high grade steel

Speed : 8-15 m/min

Applicable Industries : Building Material Shops, House

Control Syetem : PLC

Cutting System : Hydraulic Cutting

Tile Type : Steel

Voltage : As customer requirement

Machinery Test Report : Provided

Language system : Chinese, English

Warranty : 24 months

After-sales Service : Online support, Field installation, commissioning and training, Field

Contact Now

Steel Galvanized Metal Trapezoidal Metal Ibr Roof Tile Sheet Roll Forming Machine

Parameter

Suitable Raw Material 0.3-0.7mm, Color steel coil, Galvanized coil, Aluminized zinc coil or as your request
Under Frame 350 H-beam
Sidewall 16mm
Roller High grade 45# steel, processed by CNC lathe, hardening and tempering, polishing, hard chrome plated 0.05-0.07mm
Shaft 70mm, finish turning, cylindrical grinding, with keyway
Forming Stations 13 rows
Cutting Blade Cr12Mov, quenching 58-62°, double oil cylinder
Chain 1 inch
Main Motor 5.5kw, Lichao, Shanghai, with reducer


Machine List

No. Name Qty
1. De-coiler 1 Set
2. Roll Forming Machine 1 Set
3. Hydraulic Cutting Device 1 Set
4. PLC Control Box 1 Set
5. Hydraulic Pump 1 Set
6. Stacker 1 Set

15 M Min Ibr Sheet Roll Forming Machine

15 M Min Ibr Sheet Roll Forming Machine

15 M Min Ibr Sheet Roll Forming Machine

FAQ:

1.Does one machine can only produce one size?
A.Not exactly, it depends on the machine.
2.Do you have after sales support?
A.Yes, we are happy to give advice and also have skilled technicians available to maintain the machine if needed.
3.What can you do if the machine broken?
A.Our machine's warranty period is 12months. if the broken parts can't repair, we can send the new parts replace the broken parts,
but you need pay the express cost by yourself. if after warranty period, we can through negotiation for solving the problems, and
we supply the technical support for the whole life of the equipment.
4.Can you be responsible for transport?
A.Yes, please tell us the destination port or address. we have rich experience in transport.
5.You are trade company or factory?
A.We are Manufacturer.
6.Do you provide customized?
A.Sure, we can design the equipment according to the data of the structural section you provide. We are professional sheet metal
forming machine designer and manufacturer.
