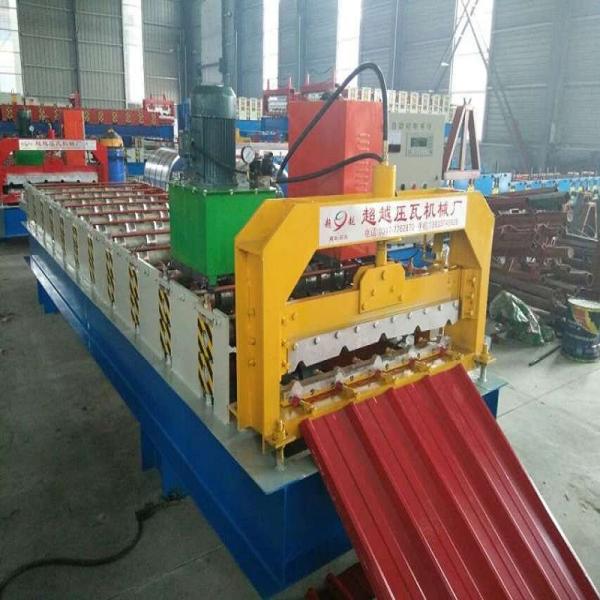

10m Min 5m Metal Roof Wall Panel Roll Forming Machine

Name: 10m Min 5m Metal Roof Wall Panel Roll Forming Machine
Brand: Chaoyi
Price: 6 USD

Wholesale 10m Min 5m Metal Roof Wall Panel Roll Forming Machine from china suppliers

Place of Origin : Hebei, China

Brand Name : Chaoyi

Certification : CE/ISO

Supply Ability : 5 Set/Sets per Month

Packaging Details : Metal Roof Panel Roll Forming Machine Made In China: 1.Tighten to container with steel wire rope and welded machine with container by angel iron 2..Main forming machine and un-coiler is naked(If you need we can also packed with water-proof plastic)

MOQ : 1 Set/Sets

Price : $6,500.00 - $8,500.00 / Set

Applicable Industries : Construction works

Condition : New

Type : Tile Forming Machine

Tile Type : Steel

Use : ROOF

Production Capacity : 10-15m/min

Voltage : 380V 50Hz 3phases

Dimension(L*W*H) : 5m*1.3m*1.3m-15m*1.3m*1.4m

Weight : 3.5T

Warranty : 2 years

After-sales Service Provided : Online support, Free spare parts, Engineers available to service machinery overseas

Name : Metal Roof Panel Roll Forming Machine Made In China

Control system : PLC(imported Brand)

The shaft : 70mm Solid

Material of rollers : Forged C45 Steel

Cutting type : Hydraulic Cutting

Cutting blade material : Cr 12 High Grade Steel

Raw material : Galvanized Sheet

Color : Client's Request

Usage : Roofing Accessories

Port : Tianjin

Contact Now

Metal Roof Panel Roll Forming Machine Made In China

Chaoyi Roll Forming Machinarey Co., Ltd. have years experience in cold roll forming equipment.Our roll forming machine can form the perfect panel as you request. Besides, our roof panels are widely used in gardens, factories, resorts, hotels, exhibition halls, vacation-lands, ancient architectures and modern villas for inner and outer decoration. The roll forming panels have the following features as below:

Lightweight

Low thermal conductivity

High strength

Bright color

Easy and fast installation, short construction period

Maintenance-free

Anti-knock

Fire proofing & rain-proof

Long lifespan

SPECIFICATIONS FOR ROLL FORMING MACHINE
Main roll forming machine	Raw material width	mm	914/100/1200/1220/1250mm
	Working Speed	m/min	6-15
	roller stations	station	13
Motor power	Main motor power	kw	4
	Hydraulic Station Power	kw	4
	Hydraulic Station Pressure	Mpa	12
Otehrs	Electrical Control System	PLC brand	famous brand
	Material Thickness	mm	0.25-0.8mm
	Cutting accuracy	mm	±2

Working Porcess

Decoiling---Guiding---Forming---Measurin---Cuttingl---Product Finished
