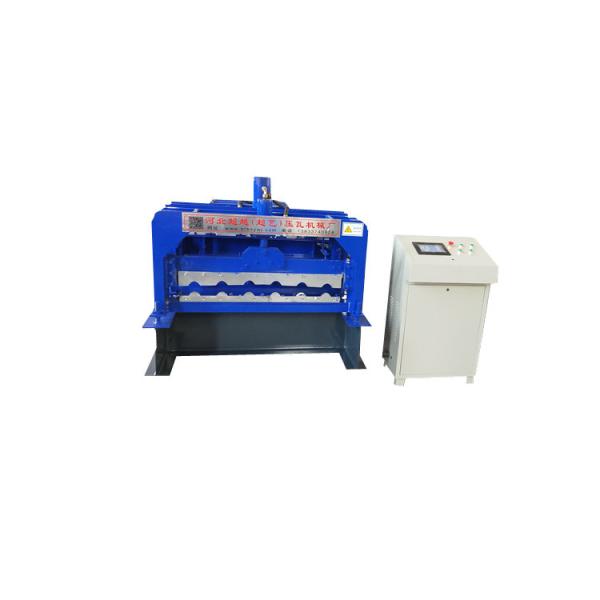

Glazed Tile Roll Forming Metal Roofing Tiles Making Machine For Building Material Machinery
Glazed Steel Tile Making Machinery for Colored Glazed Steel Roofing Sheet is used to make the color glazed tiles in batch by the Steel Tile Making Machinery. the finished product of Glazed Steel Tile Making Machinery For Colored Glazed Steel Roofing Sheet is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste. This machine working speed is around 4-5 meter per minutes.
Parameter
| No. | Main parameter of Glazed Tile Roll Forming Machine |
| 1 | Suitable to process | Color steel plate |
| 2 | Width of the plate | 1000mm |
| 3 | Rollers | 14 rows |
| 4 | Dimensions | 7800*1450*1510mm |
| 5 | Power | 4+4kw |
| 6 | Rolling material | 45# steel(plated chrome on surface) |
| 6 | Thickness of the plate | 0.3-0.6mm |
| 7 | Productivity | 4m/min |
| 8 | Diameter of the roller | Φ70mm |
| 9 | Voltage | 380V 50Hz 3phases |
| 10 | Material of the cutting plate | Cr12 |
| 11 | Hydraulic | 40# |
| 12 | Processing precision | Within 1.00mm |
| 13 | Control system | PLC control |
Machine List
| No. | Name | Qty |
| 1. | Decoiler | 1 Set |
| 2. | Roll Forming Machine | 1 Set |
| 3. | Hydraulic Cutting | 1 Set |
| 4. | PLC Control Box | 1 Set |
| 5. | Hydraulic Pump | 1 Set |
| 6. | Stacker | 1 Set |
Products Feature:
1. A stylish and attractive design, giving the apperance of a traditional roof tile.
2. Resistant to frost, heat,hail and gales; 100% waterproof, due to the lateral run-off channel on each sheet for several models.
3.The raw material can be in different color, with elegant and noble looking. It is widely used as the garden like factory, hotel, exhibition, villa,civil construction etc.
According to customer requirements, Custom roll forming machine.we can help you to supply the machine and also the material, such as color steel sheet, galvanized steel and alumium sheet.
Guarantee : 12-24 months guarantee for the machine.
We send technician to your country to fix the machine.
All life door to door service
The buyer should bear all the cost including: visa , Roundtrip tickets and suitable accommodation, also buyer should pay salary .
