Description
It is galvanized steel as a raw material, after rolling cold-formed technology, die forming, mainly used for the production of steel works with floor boards, rolled into the floor boards after its V-shaped cross-section into categories, U-type, a ladder or a combination of several shapes, mainly used to make permanent formwork composite slab or concrete slab
Our product is quality assurance, with warranty 3 year.
We can customize your roll forming machine as per your required design.You can send your inquiry or your CAD profile drawing, and our team will study your design. To manufacture the best Roll Forming Machine that you required.
Components of Metal Floor Deck Sheet Roll Forming Machine
| No. | Name | Unit | Qty |
| 1 | Manual decoiler | set | 1 |
| 2 | Main forming machine | set | 1 |
| 3 | PLC control system | set | 1 |
| 4 | Hydraulic pump station | set | 1 |
| 5 | Post cut | set | 1 |
| 6 | Electric motor | set | 1 |
| 7 | Output table | set | 1 |
Specific Parameters:
| Manual Un-coiler | Max Capacity: 5000kgs |
| Manual with brake |
| Inner diameter of coil: 400-600mm |
| Leveling Device | Ensure the material level and straight |
| The width can be adjusted |
| Auto Main Forming System | Width: According to Drawings
Height: According to Drawings
Thickness of sheet: According to Drawings
Material: GI sheet coil or Colored sheet coil
Motor Power: 18.5 kw forming system
Roller material: C45 steel, chrome coated
Diameter of shaft: 110 mm
Transmission: by chain and gear
Measuring accuracy: +/- 0.5 mm/M
Base Frame: 400 H steel welded
The machine base is assembled and welded by high quality steel
Total Length of Machine: 11.8 m |
| Hydraulic Cutting Device | Cutting way: pause to cut. |
| Blade Material: Cr12 |
| Hydraulic power: 4 kw hydraulic system. |
| Hydraulic Station Structure: 300mm steel welded. Four guide columns. |
| Electrical System | Control system: HMI & PLC control panel.
Power: 440V 50Hz (as you required) |
| Run-out Table | Frame: 8# steel groove welded
Quantity: 1 pc |

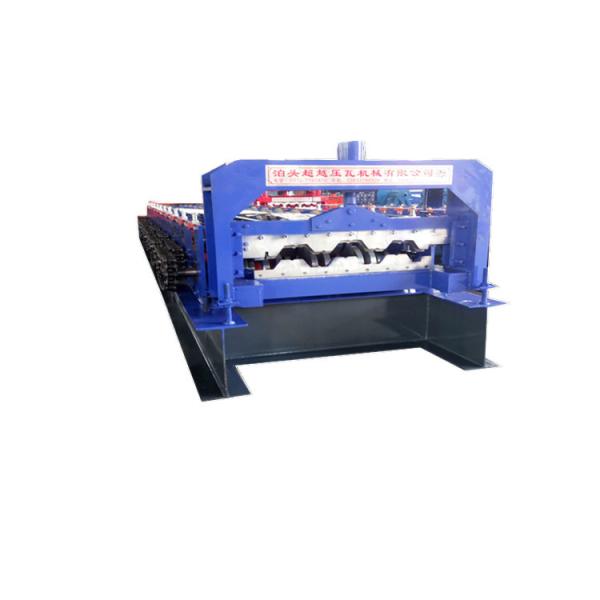

Product Image:
Component details
Application:
Packaging & Shipping
All the machines are well package that can be suitable for long distant voyage.
FAQ
1.Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than kinds of panels.
2.Do you sell only standard machines?
No, most of our machines are built according to customers specifications, using top brand name components.
3.What can you do if the machine broken?
Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts,but you need pay the express cost yourself.if after warranty period,we can through consultation to solve the problems,and we supply the technical support for the whole life of the equipment.
4. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
b. Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
