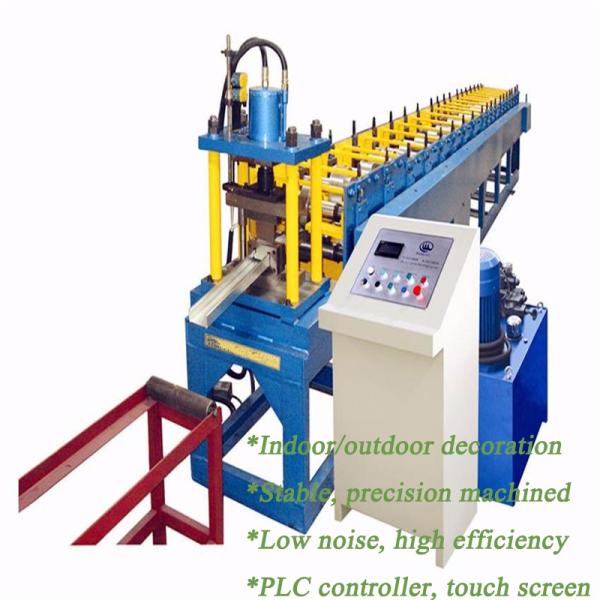

Light Steel Keel Frame Stud And Track Cold Roll Forming Machine

Name: Light Steel Keel Frame Stud And Track Cold Roll Forming Machine
Brand: Chaoyi
Price: 8 USD

Wholesale Light Steel Keel Frame Stud And Track Cold Roll Forming Machine from china suppliers

Place of Origin : Hebei, China

Brand Name : Chaoyi

Model Number : CY-Light steel keel

Certification : CE/ISO

Supply Ability : 25 Set/Sets per Month

Packaging Details : Seprerated packaged, stable and safe container loading, suitbale for long distant sea voyage; your request are availalbe

MOQ : 1 Set/Sets

Price : $8,000.00 - $20,000.00 / Set

Condition : New

Type : Tile Forming Machine

Tile Type : Steel

Use : ROOF

Power : 3KW-20.5KW

Voltage : 380V 50Hz 3phases

Dimension(L*W*H) : 5.5m*0.9m*1.2m

Weight : about 3.5T

Usage : inside/outside decoration

Control system : PLC(imported Brand)

Cutting blade material : Cr 12 High Grade Steel

Name : Light steel keel frame stud and track cold forming machine

After-sales Service Provided : Engineers available to service machinery overseas

Warranty : 1 Year

Production Capacity : 8-12m/min

Port : Tianjin

Contact Now

Light Steel Keel Frame Stud And Track Cold Forming Machine

Specification of light gauge steel framing machine
Material
Thickness	0.3-0.6mm
Feeding width	89mm/140mm/150mm
Applicable material	GI/PPGI/AL
Manual Un-coiler
Max Capacity	2.5 Ton
Features	Manual with brake

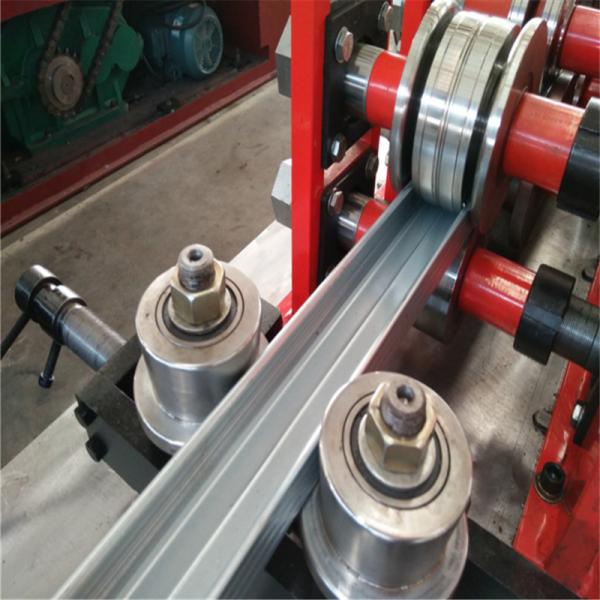

Main Forming System
Motor Power	4 KW forming system
Roller material	45# steel , precision machined, mirror treatment, coatd with rigid chrom
Main forming shaft	Φ70mm, 45# tempering steel
Frame	350H steel plate welding
Forming station	11-13 stations
Transmission	by chain-and-gear
Measuring accuracy	+/- 2 mm/M
Producing speed	4-12m/min
Working procedure	decoilering--forming--moulding--cutting--product finished
Hydraulic Cutting Device
Cutting way	Post cut, stop to cutting
Cutting material	Cr12 with harded quenched and tempered, two piece of cutting blades
Motor power of Oil pump station	4KW
Electrical System
Control system	PLC controller(import brand)
Power	380V 50Hz (as per local requirement)
Extra
Dimesion(LWH)	5000mm1000mm1000mm
Weight(Ton)	5-7T
Service
After-sales Service	Engineers available to service machinery overseas
Warranty	12 month

Working Porcess

Decoiling---Guiding---Forming---Measurin---Cuttingl---Product Finished

Light Steel Keel Frame Stud And Track Cold Roll Forming Machine

About us

Light Steel Keel Frame Stud And Track Cold Roll Forming Machine

Cangzhou Chaoyi roll forming machinery Co., Ltd is the manufactory specilized in cold roll forming equipment and automatic production.We are specialized in producing all kinds of roll forming machines such as Corrugated Sheet Roll Forming Machine, Glazed Tile Roll Forming Machine, Double Layer Roll Forming Machine, Three Layer Roll Forming Machine, Sandwich Panel Roll Forming Machine, C/Z/U Purline Roll Forming Machine, etc. There are professional engineers and workers to design and produce according to your need.

Light Steel Keel Frame Stud And Track Cold Roll Forming Machine

Packaging & Shipping

Light Steel Keel Frame Stud And Track Cold Roll Forming Machine

FAQ

Light Steel Keel Frame Stud And Track Cold Roll Forming Machine

1.Does one machine can only produce one style panel profile?

Not exactly.For wider and double layer making machine. It can produce more than kinds of panels.

2.Do you sell only standard machines?

No, most of our machines are built according to customers specifications, using top brand name components.

3.What can you do if the machine broken?

Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts,but you need pay the express cost yourself.if after warranty period,we can through consultation to solve the problems,and we supply the technical support for the whole life of the equipment.

4. How to visit your company?

a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.

b. Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
