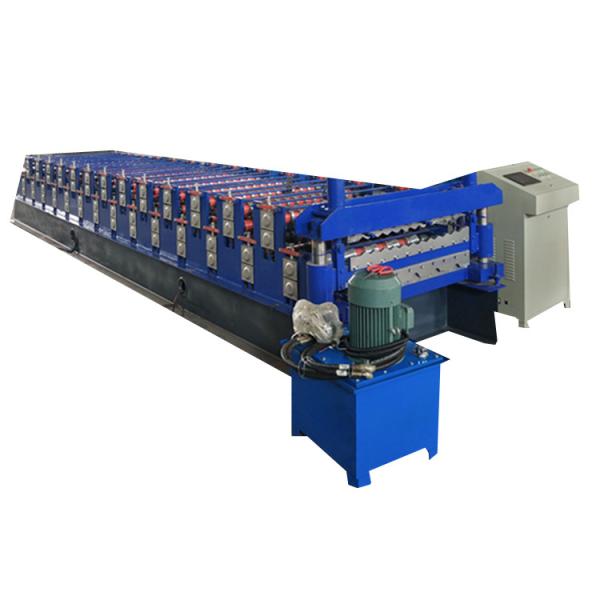

Trapezoidal Panel Profile Aluminum Double Layer Roll Forming Machine
Premium Products
Trapezoidal Panel Profile Aluminum Double Layer Roll Forming Machine
1
2
3
Place of Origin :Hebei, China
Brand Name :Chaoyi
Certification :CE/ISO
Supply Ability :30 Set/Sets per Month
Packaging Details :Separated packaged, stable and safe container loading, suitable for long distant sea voyage; your request are available
MOQ :1 Set/Sets
Price :$8,000.00 - $25,000.00 / Set
Type :Tile Forming Machine
Production Capacity :8-12m/min
Voltage :380V 50Hz 3phases
Dimension(L*W*H) :8000mm*1550mm*1500mm
Weight :4.5T
Warranty :1 Year
After-sales Service Provided :Online support, Field installation, commissioning and training, Video technical support, Engineers available to service machinery overseas
Raw material :Galvanized Sheet
Shaft material :45# Steel
Advantage :automatic operation
Port :Tianjin
Contact Now
Trapezoidal Panel Profile Sheets Steel Former Aluminum Roof Tile Making Machine Equipment Roll Forming Machine Prices
Product Description
echnical Parameters:
Material Spec
Colored Steel Sheet; Galvanized Steel Sheet
Thickness of Coil Sheet
0.3-0.8mm
Main Motor Power
5.5KW
Forming Speed
15-18M/MIN
Hydraulic Station Power
5.5 KW
Quantity of Stands
17 Stands
Hydraulic Pressure
10-12Mpa
Controlling System
PLC
Index Error of Length
10M ± 2mm
Total Weight
About 80000KGS
Voltage
380V 3 Phase 60Hz or At Buyers Requirement
Application:
This roll forming machine can separately produce corrugated roof and IBR roof in one line. The products are widely used in building the steel-structure large-scale warehouse, plants, supermarkets, shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences, and different kinds of greenhouses.
Advantage:
available for two profiles roof panel shared one frame, save the cost.
1) Used to produce different roof panels and wall panels 2) Produced panels have such advantages as below: a) Fine profile b) Attractive color c) Agile connecting d) Slightly curved 3) dual-level roll forming machine 4) We can design and manufacture different type of it to hit your particular profiles
Usage:It is used to support the steel coil and Material of rollers:45# steel,roller surfaces
uncoil it in a turnable way. The steel coil is polishing, hard plating .The polished surface and the
uncoiled by hand. heat treatment towards the molds also can keep the
Loading capacity:5T molding plate surface smooth and not easy to be
Inner diameter: 500-508mm marked when it is being stamped.
Power:4kw, The target piece's length is adjustable and digit of
Hydraulic oil: 40# it can be adjusted.Computed mode has
hydraulic oil into the hydraulic oil tank , the pump two modes: automatic and manual one.
drive the cutter machine to begin the cutting job. The system is easy to operate and use
Material of the cutting:Cr12Mov with quenched It adopts welded steel and supported roller to
treatment.It can decide cut panel dimension transmit the products,which is used to collect
according to the hydraulic drive and PLC computer the finished products.
