Customization Plc Metal Deck Roll Forming Machine

Product Categories
Cangzhou Chaoyi Roll Forming Machine Co., Ltd
Contact Now

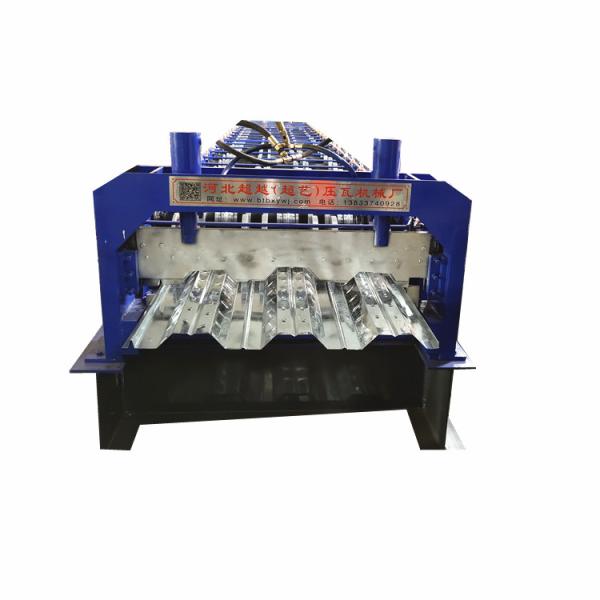

Customization Plc Metal Deck Roll Forming Machine

  • 1
  • 2

Brand Name : Chaoyi

Certification : CE/ISO9001

Place of Origin : Hebei, China

MOQ : 1 Set/Sets

Price : $24,000.00 - $68,000.00 / Set

Supply Ability : 30 Set/Sets per Month

Packaging Details : Seprerated packaged, stable and safe container loading, suitbale for long distant sea voyage; your request are availalbe

Condition : New

Type : Tile Forming Machine

Tile Type : Steel

Use : ROOF

Production Capacity : 8-12m/min

Dimension(L*W*H) : 15000m*1500m*800m

Warranty : 1 Year

After-sales Service Provided : Engineers available to service machinery overseas

life time : more than 10 year

features : high strength, large loading capacity

Name : Chaoyi Steel Deck Floor Tile Roll Forming Machine Price

Raw material : Galvanized Steel Sheet

Control system : PLC(imported Brand)

Roller material : 45#steel Chrome Plated

Shaft material : 5 Nm Chrome Coated

Cutting blade material : Cr 12 High Grade Steel

Contact Now

Description

Factory Customization Metal Floor Decking Roll Forming Machine

Professional manufacturer specialized in all kinds of floor deck roll forming machine.

Good experience for design all kind of machines.

Provide best price,good quality and fast delivery.

Customization Plc Metal Deck Roll Forming Machine

Cangzhou Chaoyi steel sheet floor deck forming machine is galvanized steel as a raw material, after rolling cold-formed technology, die forming, mainly used for the production of steel works with floor boards, rolled into the floor boards after its V-shaped cross-section into categories, U-type, a ladder or a combination of several shapes, mainly used to make permanent formwork composite slab or concrete slab

Components

No.

Name

Unit

Qty

1

Manual decoiler

set

1

2

Main forming machine

set

1

3

PLC control system

set

1

4

Hydraulic pump station

set

1

5

Post cut

set

1

6

Electric motor

set

1

7

Output table

set

1

Specific Parameters:

Manual Un-coiler Max Capacity: 5000kgs
Manual with brake
Inner diameter of coil: 400-600mm
Leveling Device Ensure the material level and straight
The width can be adjusted

Auto Main Forming

System

 Width: According to Drawings
Height: According to Drawings
Thickness of sheet: According to Drawings
Material: GI sheet coil or Colored sheet coil
Motor Power: 18.5 kw forming system
Roller material: C45 steel, chrome coated
Diameter of shaft: 110 mm
Transmission: by chain and gear
Measuring accuracy: +/- 0.5 mm/M
Base Frame: 400 H steel welded
The machine base is assembled and welded by high quality steel
Total Length of Machine: 11.8 m

Hydraulic Cutting

Device

 Cutting way: pause to cut.
Blade Material: Cr12
Hydraulic power: 4 kw hydraulic system.
Hydraulic Station Structure: 300mm steel welded. Four guide columns.
Electrical System Control system: HMI & PLC control panel.
Power: 440V 50Hz (as you required)
Run-out Table Frame: 8# steel groove welded
Quantity: 1 pc

Decoiling---Guiding---Forming---Measurin---Cuttingl---Product Finished

Customization Plc Metal Deck Roll Forming Machine

Customization Plc Metal Deck Roll Forming Machine

Customization Plc Metal Deck Roll Forming Machine

Customization Plc Metal Deck Roll Forming MachineCustomization Plc Metal Deck Roll Forming Machine

Customization Plc Metal Deck Roll Forming MachineCustomization Plc Metal Deck Roll Forming MachineCustomization Plc Metal Deck Roll Forming Machine
