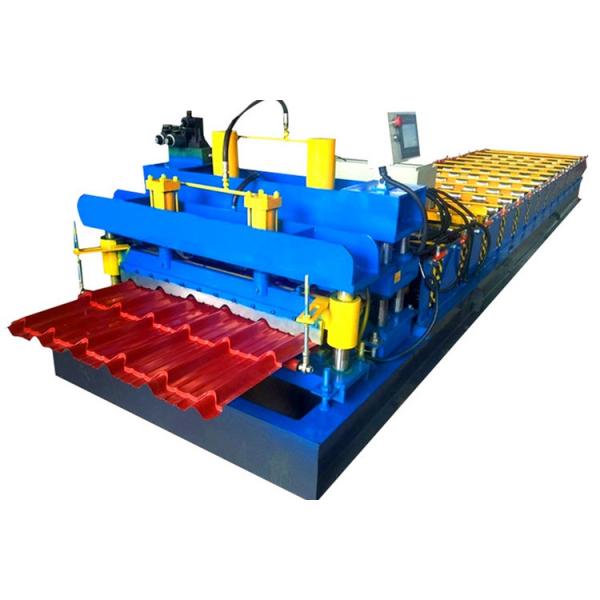

Glazed Tile Roofing Sheet Roll Forming Machine Step Tile Roofing Sheet Roll Forming Machine
The function of the main machine is roll forming the steel sheet to the profile customer the steel sheet to the profile customer want and then cut the steel sheet into piece.
The material of our roller is GCR15/CR12/CR12MOV,and our shaft and roller all be electroplate to keep from rust.
Glazed Steel Tile Making Machinery for Colored Glazed Steel Roofing Sheet is used to make the color glazed tiles in batch by the Steel Tile Making Machinery. the finished product of Glazed Steel Tile Making Machinery For Colored Glazed Steel Roofing Sheet is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste. This machine working speed is around 4-5 meter per minutes.
Parameter
| Suitable Raw Material | 0.3-0.7mm, Color steel coil, Galvanized coil, Aluminized zinc coil |
| Under Frame | 300 H-beam |
| Sidewall | 16mm |
| Roller | High grade 45# steel, processed by CNC lathe, hardening and tempering, polishing, hard chrome plated 0.05-0.07mm |
| Shaft | 70mm, finish turning, cylindrical grinding |
| Forming Stations | 13 rows |
| Cutting Blade | Cr12Mov, quenching 58-62°, double oil cylinder |
| Chain | 1 inch |
| Main Motor | 4.0kw, Lichao, Shanghai, with reducer |
| PLC | DELTA, TAIWAN |
Machine List
| No. | Name | Qty |
| 1. | Decoiler | 1 Set |
| 2. | Roll Forming Machine | 1 Set |
| 3. | Hydraulic Cutting | 1 Set |
| 4. | PLC Control Box | 1 Set |
| 5. | Hydraulic Pump | 1 Set |
| 6. | Stacker | 1 Set |
The company is specialized in manufacturing Color steel forming machinery, C purling machine, Glazed tile forming machine, sandwich panel roll forming machine, roll shutter door roll forming machine.highway guardrail forming machine, floor tile roll forming machine,car panel roll forming machine and other equipment accessories.
FAQ
Q1. What are the main key points for selecting right machines?
A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point.
Good quality is for long-term business cooperation.
Q2. What’s your standard trade terms ?
A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for competitive ocean freight.
Q3. Can you provide OEM service for roll forming machine?
A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.
Q4. How about the after-sale service?
A5: We provide 24 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely.
Q5. If I am in Beijing,Shanghai or Guangzhou,how to visit your company?
A6: 1) BeiJing South Statioin to Cangzhou West Station (by fast train 1 hour).
2) Shanghai Hongqiao to Cangzhou West (4.5 hours)
3) Guangzhou Airport to Tianjin ,then Tianjin to Cangzhou West
