Stud Truss Making Machine

Place of Origin : Hebei, China

Brand Name : Chaoyi

Model Number : Stud and truss profile light steel roll forming machine

Certification : CE/ISO

Supply Ability : 25 Set/Sets per Month

Packaging Details : Separated packaged, stable and safe container loading, suit bale for long distant sea voyage; your request are available

MOQ : 1 Set/Sets

Price : $8,000.00 - $20,000.00 / Set

Condition : New

Type : Tile Forming Machine

Tile Type : Steel

Use : ROOF

Power : 3KW-20.5KW

Voltage : 380V 50Hz 3phases

Dimension(L*W*H) : 5.5m*0.9m*1.2m

Weight : about 3.5T

Name : Stud and truss profile light steel roll forming machine

Control system : PLC(imported Brand)

Cutting blade material : Cr 12 High Grade Steel

Roller material : 45#steel Chrome Plated

Shaft material : High Grade No.45 Forged

Raw material : Galvanized Steel Sheet

Plc : DETLA

Color : Customers Requirement

After-sales Service Provided : Engineers available to service machinery overseas

Warranty : 1 Year

Production Capacity : 8-12m/min

Port : Tianjin

Contact Now

Stud And Truss Profile Light Steel Roll Forming Machine

Description

Material can be aluminum or galvanized steel or PPGI sheet

Easy operation, less maintenace

Rugged construction, defect free

Hydraulic cutting with high speed

surface smooth, impact resistance

We can provide you the high level quality machine with higher configuration, but also we can provide the machine with other configuration with competitive price.

We are quailty assurance, our warranty is 3 years. IF you want such needs or professional consultation, pls contact us 7*24 hrs Libby:whatsapp/wechat:+8613784742176

SPECIFICATIONS FOR ROLL FORMING MACHINE
Main roll forming
machine
Raw material width
mm
30-300
Working Speed
m/min
8-15
roller stations
station
13
Motor power
Main motor power
kw
4
Hydraulic Station Power
kw
4
Hydraulic Station Pressure
Mpa
12
Otehrs
Electrical Control System
PLC brand
famous brand
Material Thickness
mm
0.25-0.8mm
Cutting accuracy
mm
±2

Stud Truss Making Machine

Product Images:

350 H steel, strong frame: more stable and no shaking when working

Stud Truss Making Machine

Stud Truss Making Machine

Shaft bear support box: hard to deform

Stud Truss Making Machine

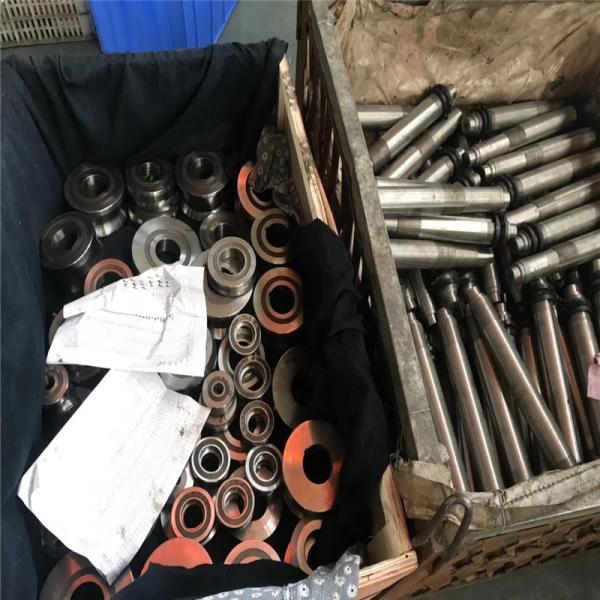

Roller: 45# hard steel, mirror treatment, coated with rigid chrome

Motor and pump station to keep the high speed, PLC controller: easy to operate

Stud Truss Making Machine

Profile

Stud Truss Making MachineStud Truss Making Machine

About us

Stud Truss Making Machine

Cangzhou Chaoyi roll forming machinery Co., Ltd is the manufactory specilized in cold roll forming equipment and automatic production.We are specialized in producing all kinds of roll forming machines such as Corrugated Sheet Roll Forming Machine, Glazed Tile Roll Forming Machine, Double Layer Roll Forming Machine, Three Layer Roll Forming Machine, Sandwich Panel Roll Forming Machine, C/Z/U Purline Roll Forming Machine, etc. There are professional engineers and workers to design and produce according to your need.

We firmly hold the belief that only good quality and satisfactory after-sale service can make our factory stand out. There are professional engineers ready going abroad to provide installing, commissioning service and technical guide. We try our best in this field.

The machines produced by our factory have been sold worldwide such as Russia , Kazakhstan, England, America, Italy, Australia, Philippines, India, Thailand, Nigeria and Syria, etc. So we are familiar with the different needs for different markets.

Stud Truss Making Machine

Stud Truss Making Machine

FAQ

1.Does one machine can only produce one style panel profile?

Not exactly.For wider and double layer making machine. It can produce more than kinds of panels.

2.Do you sell only standard machines?

No, most of our machines are built according to customers specifications, using top brand name components.

3.What can you do if the machine broken?

Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts,but you need pay the express cost yourself.if after warranty period,we can through consultation to solve the problems,and we supply the technical support for the whole life of the equipment.
