Light Stud Track Roll Forming Machine

Name: Light Stud Track Roll Forming Machine
Brand: Chaoyi
Price: 8 USD

Wholesale Light Stud Track Roll Forming Machine from china suppliers

Place of Origin : Hebei, China

Brand Name : Chaoyi

Model Number : Light gauge steel stud and track roll forming machine

Certification : CE/ISO9001

Supply Ability : 25 Set/Sets per Month

Packaging Details : Separated packaged, stable and safe container loading, suitable for long distant sea voyage; your request are available

MOQ : 1 Set/Sets

Price : $8,000.00 - $20,000.00 / Set

Condition : New

Type : Tile Forming Machine

Tile Type : Steel

Use : ROOF

Power : 3KW-20.5KW

Voltage : 380V 50Hz 3phases

Dimension(L*W*H) : 7.5m*0.9m*1.2m

Weight : about 3.5T

Name : Light gauge steel stud and track roll forming machine

Usage : inner/outer decoration

Control system : PLC(imported Brand)

Shaft material : 5 Nm Chrome Coated

Roller material : 45#steel Chrome Plated

Cutting blade material : Cr12 Quenched

Plc : DETLA

Color : Customers Requirement

After-sales Service Provided : Engineers available to service machinery overseas

Warranty : 3 Year

Production Capacity : 8-12m/min

Port : Tianjin

Contact Now

Light gauge steel stud and track roll forming machine

Metal frame including the main tee, T grid, UC, UD, WC, WD, L, V shape, for ceiling, for drywall and etc.

We can fully provide the product as your request. Different sizes, different shapes are available for us, if you provide us the sample or profile drawing

We can provide you the high level quality machine with higher configuration, but also we can provide the machine with other configuration with competitive price.

We are quailty assurance, our warranty is 3 years. IF you want such needs or professional consultation, pls contact us 7*24 hrs by Whatsapp/wechat: +8613784742176

Working Process

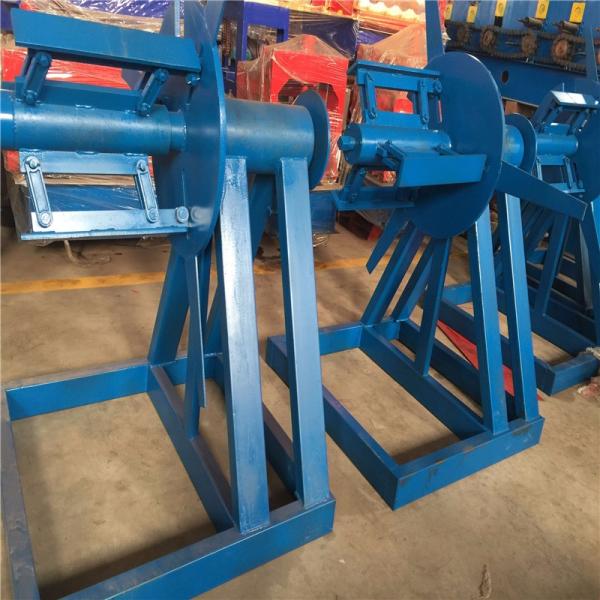

Decoiling---Guiding---Forming---Measurin---Cuttingl---Product Finished

Technical Parameter:

Suitable material	Steel Belt
Main motor power	7.5KW
Hydraulic station power	4 KW
Hydraulic oil	36#
Thickness of material	0.6-1.5mm
Diameter of principal axis	Φ70mm
Electric tension	380V 3phase 50HZ
Material of roller	CGr15 bearing steel HR58-60
Galvanization thickness	0.05mm
Processing speed	15m/min
Processing precision within	10m+/-1.00mm
Material of cutting blade	Cr12 mould steel
Kind of drive	Sprocket&Chain
Roller station	14 Rollers
Dimension	9.5m1.8m1.2m
Weight	5.5Ton
Screen	5.7 inch Taida screen
PLC brand	Taida DVP14ES/Simens Brand
