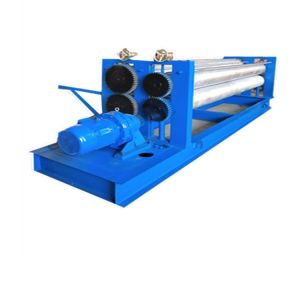

3KW Roofing Sheet Panel Corrugated Zinc Sheet Making Machine

Name: 3KW Roofing Sheet Panel Corrugated Zinc Sheet Making Machine
Brand: Chaoyi
Price: 19 USD

Wholesale 3KW Roofing Sheet Panel Corrugated Zinc Sheet Making Machine from china suppliers

Place of Origin : Hebei, China

Brand Name : Chaoyi

Certification : CE/ISO9001

Supply Ability : 30 Set/Sets per Month

Packaging Details : Seprerated packaged, stable and safe container loading, suitbale for long distant sea voyage; your request are availalbe

MOQ : 1 Set/Sets

Price : $19,000.00 - $32,000.00 / Set

Condition : New

Type : Tile Forming Machine

Tile Type : Colored Glaze Steel

Use : ROOF

Production Capacity : 8-12m/min

Power : 3KW-20.5KW

Voltage : 380V 50Hz 3phases

Dimension(L*W*H) : 8000mm*1550mm*1500mm

Weight : 4.5T

Name : Roof standing seam roll forming machine for sale

Raw material : Ppgi

Control system : PLC(imported Brand)

Shaft material : High Grade No.45 Forged

Roller material : 45#steel Chrome Plated

Cutting blade material : Cr 12

Color : Customers Requirement

Usage : Roofing Accessories

Cutting type : Length

Function : Steel Roof Wall

After-sales Service Provided : Engineers available to service machinery overseas

Warranty : 1 Year

Port : Tianjin

Contact Now

Roofing Sheet Tile corrugated metal steel zinc panel making machine

1.Transverse barrel corrugating type.

2.Raw material: thin Galvanized steel sheets, Aluzinc steel sheets etc

3.Sheet width:762mm(2.5 feet),914mm(3 feet),1000mm,1250mm

4.Width deviation:+25mm,-10mm.

5.Sheet Maximum length:4000mm, Thickness: 0.14mm to 0.40mm

6.Pitch:76 mm(+/-1.0mm) or customer(s) required.

7.Depth:18mm(+/-0.5mm) or customer(s) required.

8.Corrugation:large round wave (Based on JIS G3316).

9.Drive:geared motor 7.5Kw with reducer X one(1).

10.Roll revolution:max 12/minute.

11.Guider for sheet input:welded steel structure with stopper for setting width.

12.Corrugation roll:barrel length 2500mm-4500mmL.

13.Pitch adjust roll:barrel length 2500mm-4500mmL.

14.Up & down device for corrugation and pitch adjusting rolls.

15.Screw X four(4),adjusted by manual handles.

16.Guider for output products:welded steel plates.

17.Control and op panel:relay type X one(1).

18.Hardness:full hard,semi hard,soft.

19.Power:380V (50HZ).

20. Corrugated roll diameter : 385mm

21.Flat roll diameter: 345mm

IF you want such needs or professional consultation, pls contact us 7*24 hrs Huazhi Zhao:whatsapp/wechat:+8613784742176

3KW Roofing Sheet Panel Corrugated Zinc Sheet Making Machine

Contact us 7*24 hours Huazhi Zhao:whatsapp/wechat:+8613784742176

3KW Roofing Sheet Panel Corrugated Zinc Sheet Making Machine
